Diamond

Openness factor:1%
Thickness:0.72mm
Weight:495.5g/m2
Fabric Count:64x44
Yarn Diameter:0.33mm
Tensile Strength :Warp 385 , Weft 279
Tearing Strength :Warp 32.7 , Weft 19.6

Design No. D30101
Article No. SYJJ0-0319

Openness factor:1%
Thickness:0.72mm
Weight:495.5g/m2
Fabric Count:64x44
Yarn Diameter:0.33mm
Tensile Strength :Warp 385 , Weft 279
Tearing Strength :Warp 32.7 , Weft 19.6

Design No. D30102
Article No. SYJJ0-0320

Openness factor:5%
Thickness:0.66mm
Weight:420.7g/m2
Fabric Count:48x48
Yarn Diameter:0.33mm
Tensile Strength :Warp 297 , Weft 287
Tearing Strength :Warp 24.7 , Weft 27.1

Design No. D30501
Article No. SYJJ0-0314

Openness factor:5%
Thickness:0.66mm
Weight:420.7g/m2
Fabric Count:48x48
Yarn Diameter:0.33mm
Tensile Strength :Warp 297 , Weft 287
Tearing Strength :Warp 24.7 , Weft 27.1

Design No. D30502
Article No. SYJJ0-0315

Openness factor:5%
Thickness:0.66mm
Weight:420.7g/m2
Fabric Count:48x48
Yarn Diameter:0.33mm
Tensile Strength :Warp 297 , Weft 287
Tearing Strength :Warp 24.7 , Weft 27.1

Design No. D30503
Article No. SYJJ0-0316

Openness factor:5%
Thickness:0.66mm
Weight:420.7g/m2
Fabric Count:48x48
Yarn Diameter:0.33mm
Tensile Strength :Warp 297 , Weft 287
Tearing Strength :Warp 24.7 , Weft 27.1

Design No. D30505
Article No. SYJJ0-0318

Openness factor:5%
Thickness:0.66mm
Weight:420.7g/m2
Fabric Count:48x48
Yarn Diameter:0.33mm
Tensile Strength :Warp 297 , Weft 287
Tearing Strength :Warp 24.7 , Weft 27.1

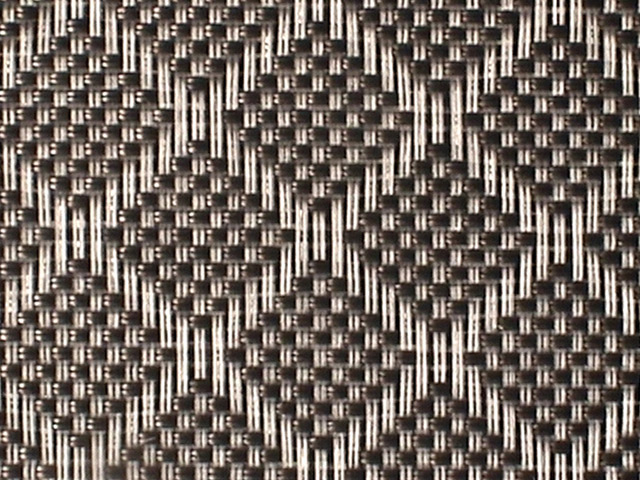

Design No. D30504
Article No. SYJJ0-0317
